#include <EditorCell.h>

Inheritance diagram for EditorCell:

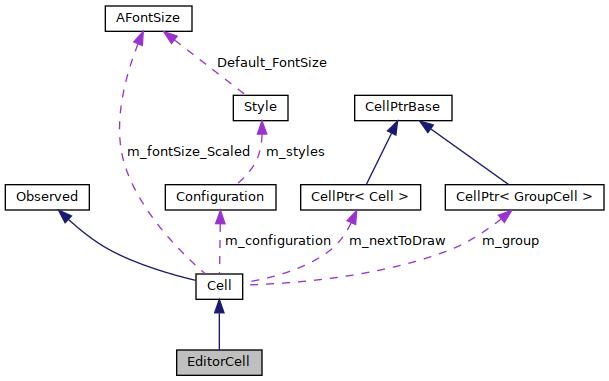

Collaboration diagram for EditorCell:

[legend]

Public Member Functions
	EditorCell (GroupCell group, Configuration *config, const wxString &text={})
	The constructor.

	EditorCell (GroupCell *group, const EditorCell &cell)

const CellTypeInfo &	GetInfo () override
	Returns the information about this cell's type.

std::unique_ptr< Cell >	Copy (GroupCell *group) const override

EditorCell *	GetPrevious () const
	Get the previous EditorCell in the list.

EditorCell *	GetNext () const
	Get the next EditorCell in the list.

void	InsertEscCommand (const wxString &txt)
	Insert the symbol that corresponds to the ESC command txt.

wxString	GetFullCommandUnderCursor ()
	Get the whole maxima command that is currently under the cursor (including all arguments)

void	AddDrawParameter (wxString param)
	Add a new parameter to a draw- or similar command including the comma, if needed.

void	AutoAnswer (bool autoAnswer)
	May this Editor Cell contain the answer to a question?

void	SearchStartedHere (int index) const

void	SearchStartedHere () const
	Remember that this is the cell the search was started in.

void	MouseSelectionStartedHere () const
	Remember that this is the cell the mouse selection was started in.

void	KeyboardSelectionStartedHere () const
	Remember that this is the cell the keyboard selection was started in.

const auto &	GetWordList () const
	A list of words that might be applicable to the autocomplete function.

void	Recalculate (AFontSize fontsize) override

virtual void	Draw (wxPoint point) override

wxString	ToHTML () const
	Convert the current cell to HTML code.

wxString	ToMatlab () const override
	Convert this cell to its Matlab representation.

wxString	ToMatlab (bool dontLimitToSelection) const
	Convert the current cell to Matlab code. More...

wxString	ToRTF () const override
	Convert the current cell to RTF code.

wxString	ToString () const override
	Returns the cell's representation as a string.

wxString	ToString (bool dontLimitToSelection) const

wxString	ToTeX () const override
	Convert the current cell to LaTeX code.

wxString	ToXML () const override
	Convert the current cell to XML code for inclusion in a .wxmx file.

void	SetFont ()
	Set the currently used font to the one that matches this cell's formatting.

void	SetForeground ()
	Sets the current color to this cell's foreground color.

void	SetValue (const wxString &text) override

const wxString &	GetValue () const override

void	StyleText ()

void	StyleTextCode ()

void	StyleTextTexts ()

void	Reset ()

void	ProcessEvent (wxKeyEvent &event) override
	Decide what to do if the user pressed a key when this cell was selected.

void	ActivateCursor ()

void	DeactivateCursor ()
	Deactivate the blinking cursor in the EditorCell it is in.

size_t	BeginningOfLine (long pos) const
	Return the index of the 1st char of the line containing the letter pos.

size_t	EndOfLine (long pos)
	Return the index of the last char of the line containing the letter #pos,.

bool	AddEnding () override
	Adds a ";" to the end of the last command in this cell in case that it doesn't end in $ or ;.

void	PositionToXY (int position, unsigned int x, unsigned int y)
	Determines which line and column the pos'th char is at.

int	XYToPosition (int x, int y)
	Determines which index the char at the position "x chars left, y chars down" is at.

wxPoint	PositionToPoint (int pos=-1) override
	The screen coordinates of the cursor.

void	SelectPointText (wxPoint point) override
	Sets the cursor to the screen coordinate point.

void	SelectRectText (wxPoint one, wxPoint two) override
	Selects the text between the screen coordinates one and two.

wxString	SelectWordUnderCaret (bool selectParens=true, bool toRight=true, bool includeDoubleQuotes=false)
	Selects the word the cursor is currently at.

bool	IsPointInSelection (wxPoint point)
	Is the point point inside the currently selected text?

bool	CopyToClipboard () const override

bool	CutToClipboard () override

void	PasteFromClipboard (bool primary=false) override

int	GetSelectionStart () const
	Get the character position the selection has been started with.

int	GetSelectionEnd () const
	Get the character position the selection has been ended with.

void	SelectAll () override
	Select the whole text contained in this Cell.

bool	AllSelected () const
	Does the selection currently span the whole cell?

void	SelectNone ()
	Unselect everything.

bool	SelectionActive () const
	Is there any text selected right now?

bool	CanCopy () const override

bool	FindMatchingQuotes ()

void	FindMatchingParens ()

int	GetLineWidth (unsigned int line, int pos)

bool	IsDirty () const override
	true, if this cell's width has to be recalculated.

void	SwitchCaretDisplay () override
	Toggles the visibility of the cursor which is used to make it blink.

void	SetFocus (bool focus) override

void	SetFirstLineOnly (bool show=true)

bool	IsActive () const override

bool	CaretAtStart () const
	Is the cursor at the start of this cell?

void	CaretToStart ()
	Move the cursor to the start of this cell.

bool	CaretAtEnd () const
	Is the cursor at the end of this cell?

void	CaretToEnd ()
	Move the cursor to the end of this cell.

void	CaretToPosition (int pos)
	Move the cursor to a certain position in the cell.

bool	CanUndo () const
	True, if there is undo information for this cell.

void	Undo ()
	Issue an undo command.

bool	CanRedo () const
	True, if a redo can be done for this cell.

void	Redo ()
	Issu a redo command.

void	SaveValue ()
	Save the current contents of this cell in the undo buffer.

wxString	DivideAtCaret ()

void	CommentSelection ()

void	ClearUndo ()

bool	ContainsChanges () const
	Query if this cell needs to be re-evaluated by maxima.

void	ContainsChanges (bool changes)
	Set the information if this cell needs to be re-evaluated by maxima.

bool	CheckChanges ()

int	ReplaceAll (wxString oldString, const wxString &newString, bool ignoreCase)

bool	FindNext (wxString str, const bool &down, const bool &ignoreCase)

bool	IsSelectionChanged () const

void	SetSelection (int start, int end)

void	GetSelection (int start, int end) const

bool	ReplaceSelection (const wxString &oldStr, const wxString &newString, bool keepSelected=false, bool ignoreCase=false, bool replaceMaximaString=false)

wxString	GetSelectionString () const
	Convert the current selection to a string.

wxString	GetWordUnderCaret ()
	The word the cursor currently is at.

wxString	GetCurrentCommand ()
	Get the command the cursor is in the arguments for.

void	ClearSelection ()
	Unselect everything.

void	SetErrorIndex (int index)
	Sets the index the error is at.

bool	ErrorIndexSet () const

void	GotoError ()

void	ProcessNewline (bool keepCursorAtStartOfLine=true)
	Start a new line and optionally auto-indent it.

int	GetCaretPosition () const
	Get the cursor's current position inside the cell.

void	ConvertNumToUNicodeChar ()
	Convert a number to unicode chars.

void	SetCaretPosition (int pos)
	Set the cursor's current position inside the cell.

bool	FindNextTemplate (bool left=false)

void	InsertText (wxString text)

wxString	TextInFrontOfSelection () const

void	ReturnToSelectionFromTop ()
	Return to the selection after the cell has been left upwards.

void	SetType (CellType type) override
	Sets the text style according to the type.

void	SetStyle (TextStyle style) override
	Sets the TextStyle of this cell.

bool	NeedsRecalculation (AFontSize fontSize) const override
	True, if something that affects the cell size has changed.

void	ReturnToSelectionFromBot ()
	Return to the selection after the cell has been left downwards.

const MaximaTokenizer::TokenList &	GetTokens () const
	Get the list of commands, parenthesis, strings and whitespaces in a code cell.

Public Member Functions inherited from Cell
	Cell (GroupCell group, Configuration *config)

int	Scale_Px (double px) const

AFontSize	Scale_Px (AFontSize size) const

virtual const wxString &	GetToolTip (wxPoint point) const

virtual	~Cell ()
	Delete this list of cells.

int	CellsInListRecursive () const
	How many cells does this cell contain? More...

wxRect	CropToUpdateRegion (wxRect rect) const
	The part of the rectangle rect that is in the region that is currently drawn.

bool	InUpdateRegion () const
	Is this cell inside the region that is currently drawn?

bool	SoftLineBreak (bool breakLine=true)
	Do we want this cell to start with a linebreak?

bool	BreakLineHere () const
	Are we allowed to break a line here?

bool	HasHardLineBreak () const
	Does this cell begin with a manual linebreak?

virtual bool	BreakUp ()

bool	ContainsRect (const wxRect &sm, bool all=true) const

bool	ContainsPoint (wxPoint point) const

virtual void	ClearCache ()

void	ClearCacheList ()

void	SetConfigurationList (Configuration **config)

virtual void	SetConfiguration (Configuration **config)

Configuration *	GetConfiguration ()

void	Draw ()

void	DrawList (wxPoint point)

void	DrawList ()

virtual void	DrawBoundingBox (wxDC &WXUNUSED(dc), bool all=false)

bool	DrawThisCell (wxPoint point)

bool	DrawThisCell ()

void	ForceBreakLine (bool force=true)

int	GetHeight () const

int	GetWidth () const

int	GetCenter () const

bool	HasValidSize () const
	Is the size valid and not pending a recalculation?

bool	HasStaleSize () const
	Is the size valid, whether a recalculation is pending or not?

bool	HasValidPosition () const
	Is the position valid?

int	GetDrop () const

CellType	GetType () const

int	GetMaxDrop () const

int	GetCenterList () const

int	GetHeightList () const

int	GetFullWidth () const
	How many pixels is this list of cells wide, if we don't break it into lines?

int	GetLineWidth () const

int	GetCurrentX () const

int	GetCurrentY () const

virtual wxRect	GetRect (bool all=false) const

virtual wxString	GetDiffPart () const

void	RecalculateList (AFontSize fontsize)

void	FontsChangedList ()
	Tell a whole list of cells that their fonts have changed.

void	ClearNeedsToRecalculateWidths ()

void	ResetData ()
	Mark all cached size information as "to be calculated". More...

void	ResetDataList ()

void	ResetSize ()
	Mark the cached height and width information as "to be calculated".

void	ResetCellListSizes ()
	Mark the line and cell list widths and heights as "to be calculated".

void	ResetCellListSizesList ()
	Mark the line and cell list widths and heights as "to be calculated".

void	SetZeroSize ()

void	ResetSizeList ()
	Mark the cached height information of the whole list of cells as "to be calculated".

void	SetBigSkip (bool skip)

bool	HasBigSkip () const

TextStyle	GetStyle () const

void	SetPen (double lineWidth=1.0) const
	Sets the drawing pen to the cell's default foreground color.

void	SetBrush () const
	Sets the fill brush to the cell's default foreground color.

wxColour	GetForegroundColor () const

void	SetHighlight (bool highlight)
	Mark this cell as highlighted (e.G. being in a maxima box)

bool	GetHighlight () const
	Is this cell highlighted (e.G. inside a maxima box)

virtual void	SetExponentFlag ()

virtual void	SetValue (const wxString &WXUNUSED(text))

Cell *	first () const
	Get the first cell in this list of cells.

Cell *	last () const
	Get the last cell in this list of cells.

Range	GetCellsInRect (const wxRect &rect) const

Range	GetListCellsInRect (const wxRect &rect) const

virtual Range	GetInnerCellsInRect (const wxRect &rect) const
	Select the cells inside this cell described by the rectangle rect.

virtual bool	IsOperator () const
	Is this cell an operator?

bool	IsCompound () const
	Do we have an operator in this line - draw () in frac...

virtual bool	IsShortNum () const

GroupCell *	GetGroup () const
	Returns the group cell this cell belongs to.

virtual wxString	ListToString () const
	Returns the list's representation as a string.

wxString	VariablesAndFunctionsList () const

virtual wxString	ListToMatlab () const
	Convert this list to its LaTeX representation.

virtual wxString	ListToTeX () const
	Convert this list to its LaTeX representation.

virtual wxString	ListToXML () const
	Convert this list to a representation fit for saving in a .wxmx file.

virtual wxString	ListToMathML (bool startofline=false) const
	Convert this list to a MathML representation.

virtual wxString	ListToOMML (bool startofline=false) const
	Convert this list to an OMML representation.

virtual wxString	ListToRTF (bool startofline=false) const
	Convert this list to an RTF representation.

virtual wxString	ToOMML () const

virtual wxString	ToMathML () const
	Convert this cell to a representation fit for saving in a .wxmx file.

virtual void	Unbreak ()

virtual void	UnbreakList ()

Cell *	GetPrevious () const

Cell *	GetNext () const
	Get the next cell in the list.

Cell *	GetNextToDraw () const

virtual void	SetNextToDraw (Cell *next)

template<typename T , typename Del , typename std::enable_if< std::is_base_of< Cell, T >::value, bool >::type = true>
void	SetNextToDraw (const std::unique_ptr< T, Del > &ptr)

bool	IsComment () const

bool	IsHidden () const

virtual void	Hide (bool hide=true)

bool	IsEditable (bool input=false) const

virtual bool	CanPopOut () const
	Can this cell be popped out interactively in gnuplot?

virtual wxString	GnuplotSource () const

virtual void	ProcessEvent (wxKeyEvent &WXUNUSED(event))
	Processes a key event.

virtual wxPoint	PositionToPoint (int WXUNUSED(pos)=-1)

virtual void	SetFocus (bool WXUNUSED(focus))

void	SetForeground ()
	Sets the foreground color.

bool	IsMath () const
	Is this cell possibly output of maxima?

virtual int	GetImageBorderWidth () const
	0 for ordinary cells, 1 for slide shows and diagrams displayed with a 1-pixel border

void	CopyCommonData (const Cell &cell)
	Copy common data (used when copying a cell)

std::unique_ptr< Cell >	CopyList (GroupCell *group) const
	Return a copy of the list of cells beginning with this one.

void	ClearToolTip ()
	Remove this cell's tooltip.

void	SetToolTip (wxString &&toolTip)
	Set the tooltip to a given temporary string - the cell will move from it.

void	SetToolTip (const wxString *tooltip)

void	AddToolTip (const wxString &tip)
	Add another tooltip to this cell.

virtual void	SetCurrentPoint (wxPoint point)
	Tells this cell where it is placed on the worksheet.

void	SetCurrentPoint (int x, int y)
	Tells this cell where it is placed on the worksheet.

wxPoint	GetCurrentPoint () const
	Where is this cell placed on the worksheet?

bool	IsBrokenIntoLines () const

bool	GetSuppressMultiplicationDot () const

void	SetSuppressMultiplicationDot (bool val)

bool	GetHidableMultSign () const
	Whether this is a hidable multiplication sign.

void	SetHidableMultSign (bool val)

virtual void	SetAltCopyText (const wxString &text)

virtual const wxString &	GetAltCopyText () const
	Get the text set using SetAltCopyText - may be empty.

const wxString &	GetLocalToolTip () const

Public Member Functions inherited from Observed
bool	IsNull () const

bool	HasControlBlock () const

bool	HasOneCellPtr () const

Static Public Member Functions
static wxString	TabExpand (const wxString &input, long posInLine)

static wxString	EscapeHTMLChars (wxString input)
	Escape all chars that cannot be used in HTML otherwise.

static wxString	PrependNBSP (wxString input)
	Convert all but the first of a row of multiple spaces to non-breakable.

Static Public Member Functions inherited from Cell
static wxString	OMML2RTF (wxXmlNode *node)
	Converts an OMML tag to the corresponding RTF snippet.

static wxString	OMML2RTF (wxString ommltext)
	Converts OMML math to RTF math.

static wxString	RTFescape (wxString, bool MarkDown=false)
	Escape a string for RTF.

static wxString	XMLescape (wxString)
	Escape a string for XML.

static std::unique_ptr< Cell >	CopyList (GroupCell group, const Cell cell)
	Return a copy of the given list of cells.

static std::unique_ptr< Cell >	MakeVisiblyInvalidCell (GroupCell group, Configuration *config)

Static Public Member Functions inherited from Observed
static size_t	GetLiveInstanceCount ()

static size_t	GetLiveControlBlockInstanceCount ()

Additional Inherited Members
Protected Member Functions inherited from Cell
void	BreakUpAndMark ()
	Break up the internal cells of this cell, and mark it as broken up.

std::unique_ptr< Cell >	MakeVisiblyInvalidCell () const

virtual int	GetInnerCellCount () const
	The number of inner cells - for use by the iterators.

virtual Cell *	GetInnerCell (int index) const

Worksheet *	GetWorksheet () const

CellPointers *	GetCellPointers () const

void	InvalidateMaxDrop ()

Protected Attributes inherited from Cell
wxPoint	m_currentPoint {-1, -1}

CellPtr< GroupCell >	m_group

CellPtr< Cell >	m_nextToDraw

Configuration **	m_configuration

const wxString *	m_toolTip

int	m_height = -1
	The height of this cell.

int	m_width = -1
	The width of this cell; is recalculated by RecalculateHeight.

int	m_center = -1

AFontSize	m_fontSize_Scaled = {}
	The font size is smaller in super- and subscripts.

CellType	m_type = MC_TYPE_DEFAULT

TextStyle	m_textStyle = TS_DEFAULT

Detailed Description

This class defines what the user sees as input cell

This class handles input cells including:

The per-cell undo buffer
The handling of key presses when this cell is active

Since Unicode doesn't provide us with a "soft linebreak" letter we use \r as a marker that this line has to be broken here if we don't want it to extend beyond the right margin of the screen.

In a few places we use wxString::const_iterator instead of accessing individual letters within the string using the [] operator. This might look overly complicated. But in UTF-8 all non-standard-ASCII-characters use more than one byte making iterating over every single char of the string the only way of determining which address char n is at. An iterator is the only way of not having to determine the address of every single char independently.

Todo:: Draw only tokens that are in the redraw region.

Member Function Documentation

◆ ActivateCursor()

void EditorCell::ActivateCursor ( )

Activate the blinking cursor in this cell

Automatically calls DeactivateCursor on an eventual cell the cursor currently is in. Normally Mathctrl::SetActiveCell() is used in order to get this function called.

◆ Copy()

std::unique_ptr<Cell> EditorCell::Copy ( GroupCell * group ) const

overridevirtual

Create a copy of this cell

This method is purely virtual, which means every child class has to define its own Copy() method.

Implements Cell.

◆ DivideAtCaret()

wxString EditorCell::DivideAtCaret ( )

DivideAtCaret Returns the string from caret to end and modifies the m_text so it contains only the string from beginning to caret Used for 'Divide Cell', called from MathCtrl

◆ Draw()

void EditorCell::Draw ( wxPoint point )

overridevirtual

Draw this cell

Parameters

point The x and y position this cell is drawn at: All top-level cells get their position during recalculation. But for the cells within them the position needs a second step after determining the dimension of the contents of the top-level cell.

Example: The position of the denominator of a fraction can only be determined after the height of denominator and numerator are known.

Draw this cell to dc

To make this work each derived class must draw the content of the cell and then call MathCall::Draw(...).

Reimplemented from Cell.

◆ FindMatchingQuotes()

bool EditorCell::FindMatchingQuotes ( )

For a given quotation mark ("), find a matching quote. Since there are no nested quotes, an odd-numbered, non-escaped quote is an opening quote, and an even-numbered non-escaped quote is a closing quote.

Returns: true if matching quotation marks were found; false otherwise

◆ FindNext()

bool EditorCell::FindNext	(	wxString	str,
		const bool &	down,
		const bool &	ignoreCase
	)

Finds the next occurrences of a string

Parameters

str	The string to search for
down	true: search downwards false: search upwards
ignoreCase	true: Case-insensitive search false: Case-sensitive search

◆ GetValue()

const wxString& EditorCell::GetValue ( ) const

inlineoverridevirtual

Returns the text contained in this cell

Naturally all soft line breaks are converted back to spaces beforehand.

Reimplemented from Cell.

◆ Recalculate()

void EditorCell::Recalculate ( AFontSize fontsize )

overridevirtual

Recalculate the size of the cell and the difference between top and center

Must set: m_height, m_width, m_center.

Parameters

fontsize In exponents, super- and subscripts the font size is reduced. This cell therefore needs to know which font size it has to be drawn at.

Reimplemented from Cell.

◆ ReplaceAll()

int EditorCell::ReplaceAll	(	wxString	oldString,
		const wxString &	newString,
		bool	ignoreCase
	)

Replaces all occurrences of a given string

◆ ReplaceSelection()

bool EditorCell::ReplaceSelection	(	const wxString &	oldStr,
		const wxString &	newString,
		bool	keepSelected = `false`,
		bool	ignoreCase = `false`,
		bool	replaceMaximaString = `false`
	)

Replace the current selection with a string

Parameters

oldStr	The old string in the selection. If this string doesn't match the selection this function doesn't replace it.
newString	The new string oldStr has to be replaced by
keepSelected	true = we want the new string to be selected afterwards false = the selection is cleared after replacing the string and moving the cursor to its end.
ignoreCase	true = ignore the case of the string to replace
replaceMaximaString	true = replace strings including the double quotes.

◆ SearchStartedHere()

void EditorCell::SearchStartedHere ( int index ) const

Remember that this is the cell the search was started in.

Parameters

index The index of the character the search was started at.

◆ SetValue()

void EditorCell::SetValue ( const wxString & text )

override

Sets the text that is to be displayed.

Automatically calls StyleText().

◆ StyleText()

void EditorCell::StyleText ( )

Converts m_text to a list of styled text snippets that will later be displayed by draw().

This function also generates a wordlist for this EditorCell so Autocompletion can learn about variable names contained in lists or cells that still haven't been evaluated.

For cells containing text instead of code this function adds a \r as a marker that this line is to be broken here until the window's width changes.

◆ StyleTextCode()

void EditorCell::StyleTextCode ( )

Is Called by StyleText() if this is a code cell

◆ TabExpand()

wxString EditorCell::TabExpand	(	const wxString &	input,
		long	posInLine
	)

static

Expand all tabulators.

Parameters

input	The string the tabulators should be expanded in
posInLine	The number of characters that come before the input in the same line

Todo:: Implement the actual TAB expansion

◆ ToMatlab()

wxString EditorCell::ToMatlab ( bool dontLimitToSelection ) const

Convert the current cell to Matlab code.

Convert the current cell to a string

Parameters

dontLimitToSelection

false: If text is selected return only the selected text
true: Always return all text in this text cell

The documentation for this class was generated from the following files:

/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/src/cells/EditorCell.h
/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/src/cells/EditorCell.cpp

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ ActivateCursor()

◆ Copy()

◆ DivideAtCaret()

◆ Draw()

◆ FindMatchingQuotes()

◆ FindNext()

◆ GetValue()

◆ Recalculate()

◆ ReplaceAll()

◆ ReplaceSelection()

◆ SearchStartedHere()

◆ SetValue()

◆ StyleText()

◆ StyleTextCode()

◆ TabExpand()

◆ ToMatlab()
