#include <Cell.h>

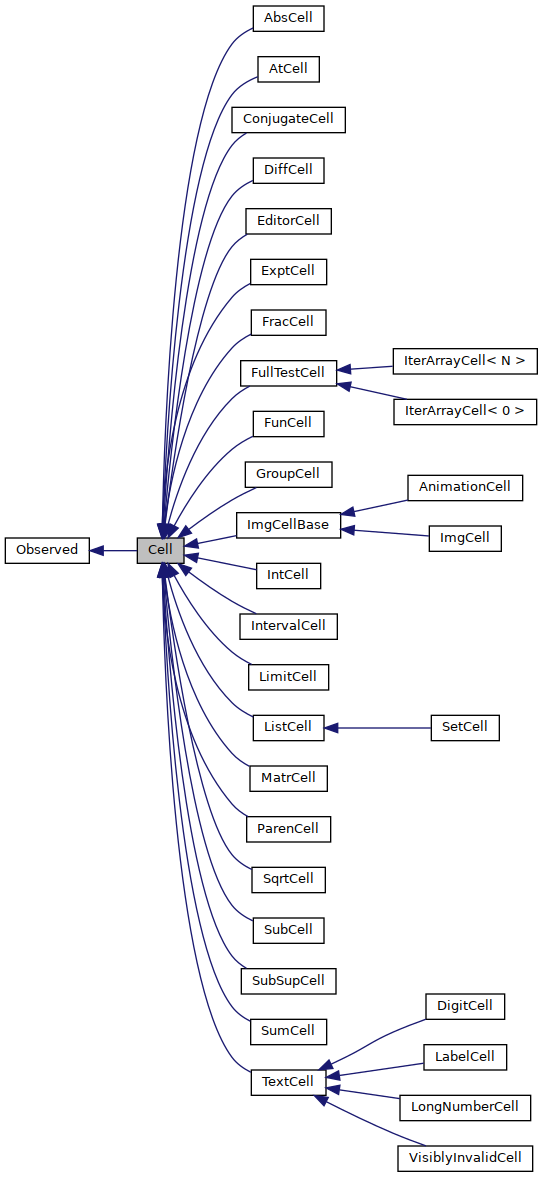

Inheritance diagram for Cell:

[legend]

Collaboration diagram for Cell:

[legend]

Classes
struct	Range

struct	SizeInMillimeters
	For the bitmap export we sometimes want to know how big the result will be... More...

Public Member Functions
	Cell (GroupCell group, Configuration *config)

virtual std::unique_ptr< Cell >	Copy (GroupCell *group) const =0

virtual const CellTypeInfo &	GetInfo ()=0
	Returns the information about this cell's type.

int	Scale_Px (double px) const

AFontSize	Scale_Px (AFontSize size) const

virtual const wxString &	GetToolTip (wxPoint point) const

virtual	~Cell ()
	Delete this list of cells.

int	CellsInListRecursive () const
	How many cells does this cell contain? More...

wxRect	CropToUpdateRegion (wxRect rect) const
	The part of the rectangle rect that is in the region that is currently drawn.

bool	InUpdateRegion () const
	Is this cell inside the region that is currently drawn?

bool	SoftLineBreak (bool breakLine=true)
	Do we want this cell to start with a linebreak?

bool	BreakLineHere () const
	Are we allowed to break a line here?

bool	HasHardLineBreak () const
	Does this cell begin with a manual linebreak?

virtual bool	BreakUp ()

bool	ContainsRect (const wxRect &sm, bool all=true) const

bool	ContainsPoint (wxPoint point) const

virtual void	ClearCache ()

void	ClearCacheList ()

void	SetConfigurationList (Configuration **config)

virtual void	SetConfiguration (Configuration **config)

Configuration *	GetConfiguration ()

virtual void	Draw (wxPoint point)

void	Draw ()

void	DrawList (wxPoint point)

void	DrawList ()

virtual void	DrawBoundingBox (wxDC &WXUNUSED(dc), bool all=false)

bool	DrawThisCell (wxPoint point)

bool	DrawThisCell ()

void	ForceBreakLine (bool force=true)

int	GetHeight () const

int	GetWidth () const

int	GetCenter () const

bool	HasValidSize () const
	Is the size valid and not pending a recalculation?

bool	HasStaleSize () const
	Is the size valid, whether a recalculation is pending or not?

bool	HasValidPosition () const
	Is the position valid?

int	GetDrop () const

CellType	GetType () const

int	GetMaxDrop () const

int	GetCenterList () const

int	GetHeightList () const

int	GetFullWidth () const
	How many pixels is this list of cells wide, if we don't break it into lines?

int	GetLineWidth () const

int	GetCurrentX () const

int	GetCurrentY () const

virtual wxRect	GetRect (bool all=false) const

virtual bool	NeedsRecalculation (AFontSize fontSize) const
	True, if something that affects the cell size has changed.

virtual wxString	GetDiffPart () const

virtual void	Recalculate (AFontSize fontsize)

void	RecalculateList (AFontSize fontsize)

void	FontsChangedList ()
	Tell a whole list of cells that their fonts have changed.

void	ClearNeedsToRecalculateWidths ()

void	ResetData ()
	Mark all cached size information as "to be calculated". More...

void	ResetDataList ()

void	ResetSize ()
	Mark the cached height and width information as "to be calculated".

void	ResetCellListSizes ()
	Mark the line and cell list widths and heights as "to be calculated".

void	ResetCellListSizesList ()
	Mark the line and cell list widths and heights as "to be calculated".

void	SetZeroSize ()

void	ResetSizeList ()
	Mark the cached height information of the whole list of cells as "to be calculated".

void	SetBigSkip (bool skip)

bool	HasBigSkip () const

virtual void	SetType (CellType type)
	Sets the text style according to the type.

TextStyle	GetStyle () const

void	SetPen (double lineWidth=1.0) const
	Sets the drawing pen to the cell's default foreground color.

void	SetBrush () const
	Sets the fill brush to the cell's default foreground color.

wxColour	GetForegroundColor () const

void	SetHighlight (bool highlight)
	Mark this cell as highlighted (e.G. being in a maxima box)

bool	GetHighlight () const
	Is this cell highlighted (e.G. inside a maxima box)

virtual void	SetExponentFlag ()

virtual void	SetValue (const wxString &WXUNUSED(text))

virtual const wxString &	GetValue () const

Cell *	first () const
	Get the first cell in this list of cells.

Cell *	last () const
	Get the last cell in this list of cells.

Range	GetCellsInRect (const wxRect &rect) const

Range	GetListCellsInRect (const wxRect &rect) const

virtual Range	GetInnerCellsInRect (const wxRect &rect) const
	Select the cells inside this cell described by the rectangle rect.

virtual bool	IsOperator () const
	Is this cell an operator?

bool	IsCompound () const
	Do we have an operator in this line - draw () in frac...

virtual bool	IsShortNum () const

GroupCell *	GetGroup () const
	Returns the group cell this cell belongs to.

virtual wxString	ListToString () const
	Returns the list's representation as a string.

wxString	VariablesAndFunctionsList () const

virtual wxString	ListToMatlab () const
	Convert this list to its LaTeX representation.

virtual wxString	ListToTeX () const
	Convert this list to its LaTeX representation.

virtual wxString	ListToXML () const
	Convert this list to a representation fit for saving in a .wxmx file.

virtual wxString	ListToMathML (bool startofline=false) const
	Convert this list to a MathML representation.

virtual wxString	ListToOMML (bool startofline=false) const
	Convert this list to an OMML representation.

virtual wxString	ListToRTF (bool startofline=false) const
	Convert this list to an RTF representation.

virtual wxString	ToString () const
	Returns the cell's representation as a string.

virtual wxString	ToRTF () const

virtual wxString	ToOMML () const

virtual wxString	ToMatlab () const
	Convert this cell to its Matlab representation.

virtual wxString	ToTeX () const
	Convert this cell to its LaTeX representation.

virtual wxString	ToXML () const
	Convert this cell to a representation fit for saving in a .wxmx file.

virtual wxString	ToMathML () const
	Convert this cell to a representation fit for saving in a .wxmx file.

virtual void	Unbreak ()

virtual void	UnbreakList ()

Cell *	GetPrevious () const

Cell *	GetNext () const
	Get the next cell in the list.

Cell *	GetNextToDraw () const

virtual void	SetNextToDraw (Cell *next)

template<typename T , typename Del , typename std::enable_if< std::is_base_of< Cell, T >::value, bool >::type = true>
void	SetNextToDraw (const std::unique_ptr< T, Del > &ptr)

bool	IsComment () const

bool	IsHidden () const

virtual void	Hide (bool hide=true)

bool	IsEditable (bool input=false) const

virtual bool	CanPopOut () const
	Can this cell be popped out interactively in gnuplot?

virtual wxString	GnuplotSource () const

virtual void	ProcessEvent (wxKeyEvent &WXUNUSED(event))
	Processes a key event.

virtual bool	AddEnding ()

virtual void	SelectPointText (wxPoint point)

virtual void	SelectRectText (wxPoint one, wxPoint two)

virtual void	PasteFromClipboard (bool primary=false)

virtual bool	CopyToClipboard () const

virtual bool	CutToClipboard ()

virtual void	SelectAll ()

virtual bool	CanCopy () const

virtual wxPoint	PositionToPoint (int WXUNUSED(pos)=-1)

virtual bool	IsDirty () const

virtual void	SwitchCaretDisplay ()

virtual void	SetFocus (bool WXUNUSED(focus))

void	SetForeground ()
	Sets the foreground color.

virtual bool	IsActive () const

virtual void	SetStyle (TextStyle style)
	Sets the TextStyle of this cell.

bool	IsMath () const
	Is this cell possibly output of maxima?

virtual int	GetImageBorderWidth () const
	0 for ordinary cells, 1 for slide shows and diagrams displayed with a 1-pixel border

void	CopyCommonData (const Cell &cell)
	Copy common data (used when copying a cell)

std::unique_ptr< Cell >	CopyList (GroupCell *group) const
	Return a copy of the list of cells beginning with this one.

void	ClearToolTip ()
	Remove this cell's tooltip.

void	SetToolTip (wxString &&toolTip)
	Set the tooltip to a given temporary string - the cell will move from it.

void	SetToolTip (const wxString *tooltip)

void	AddToolTip (const wxString &tip)
	Add another tooltip to this cell.

virtual void	SetCurrentPoint (wxPoint point)
	Tells this cell where it is placed on the worksheet.

void	SetCurrentPoint (int x, int y)
	Tells this cell where it is placed on the worksheet.

wxPoint	GetCurrentPoint () const
	Where is this cell placed on the worksheet?

bool	IsBrokenIntoLines () const

bool	GetSuppressMultiplicationDot () const

void	SetSuppressMultiplicationDot (bool val)

bool	GetHidableMultSign () const
	Whether this is a hidable multiplication sign.

void	SetHidableMultSign (bool val)

virtual void	SetAltCopyText (const wxString &text)

virtual const wxString &	GetAltCopyText () const
	Get the text set using SetAltCopyText - may be empty.

const wxString &	GetLocalToolTip () const

Public Member Functions inherited from Observed
bool	IsNull () const

bool	HasControlBlock () const

bool	HasOneCellPtr () const

Static Public Member Functions
static wxString	OMML2RTF (wxXmlNode *node)
	Converts an OMML tag to the corresponding RTF snippet.

static wxString	OMML2RTF (wxString ommltext)
	Converts OMML math to RTF math.

static wxString	RTFescape (wxString, bool MarkDown=false)
	Escape a string for RTF.

static wxString	XMLescape (wxString)
	Escape a string for XML.

static std::unique_ptr< Cell >	CopyList (GroupCell group, const Cell cell)
	Return a copy of the given list of cells.

static std::unique_ptr< Cell >	MakeVisiblyInvalidCell (GroupCell group, Configuration *config)

Static Public Member Functions inherited from Observed
static size_t	GetLiveInstanceCount ()

static size_t	GetLiveControlBlockInstanceCount ()

Protected Member Functions
void	BreakUpAndMark ()
	Break up the internal cells of this cell, and mark it as broken up.

std::unique_ptr< Cell >	MakeVisiblyInvalidCell () const

virtual int	GetInnerCellCount () const
	The number of inner cells - for use by the iterators.

virtual Cell *	GetInnerCell (int index) const

Worksheet *	GetWorksheet () const

virtual void	FontsChanged ()
	To be called if the font has changed.

CellPointers *	GetCellPointers () const

void	InvalidateMaxDrop ()

Protected Attributes
wxPoint	m_currentPoint {-1, -1}

CellPtr< GroupCell >	m_group

CellPtr< Cell >	m_nextToDraw

Configuration **	m_configuration

const wxString *	m_toolTip

int	m_height = -1
	The height of this cell.

int	m_width = -1
	The width of this cell; is recalculated by RecalculateHeight.

int	m_center = -1

AFontSize	m_fontSize_Scaled = {}
	The font size is smaller in super- and subscripts.

CellType	m_type = MC_TYPE_DEFAULT

TextStyle	m_textStyle = TS_DEFAULT

Friends
class	CellList

class	InnerCellIterator

template<typename C , typename std::enable_if< std::is_base_of< Cell, C >::value, bool >::type >
auto	OnInner (const C *cell)
	Returns an iterable that goes over the inner cells of this cell.

template<typename C , typename std::enable_if< std::is_base_of< Cell, C >::value, bool >::type >
auto	OnInner (C *cell)

Detailed Description

The base class all cell types the worksheet can consist of are derived from

Every Cell is part of two double-linked lists:

A Cell does have a member m_previous that points to the previous item (or contains a NULL for the head node of the list) and a member named m_next that points to the next cell (or contains a NULL if this is the end node of a list).
And there is m_nextToDraw that contain fractions and similar items as one element if they are drawn as a single 2D object that isn't divided by a line break, but will contain every single element of a fraction as a separate object if the fraction is broken into several lines and therefore displayed in its a linear form.

Also every list of Cells can be a branch of a tree since every math cell contains a pointer to its parent group cell.

Besides the cell types that are directly user visible there are cells for several kinds of items that are displayed in a special way like abs() statements (displayed as horizontal rules), subscripts, superscripts and exponents. Another important concept realized by a class derived from this one is the group cell that groups all things that are foldable in the gui like:

A combination of maxima input with the output, the input prompt and the output label.
A chapter or a section and
Images with their title (or the input cells that generated them)

Attention: Derived classes must test if m_next equals NULL and if it doesn't they have to delete() it.

On systems where wxWidget supports (and is compiled with) accessibility features Cell is derived from wxAccessible which allows every element in the worksheet to identify itself to an eventual screen reader.

Member Function Documentation

◆ AddEnding()

virtual bool Cell::AddEnding ( )

inlinevirtual

Add a semicolon to a code cell, if needed.

Defined in GroupCell and EditorCell

Reimplemented in GroupCell, and EditorCell.

◆ BreakUp()

bool Cell::BreakUp ( )

virtual

Try to split this command into lines to make it fit on the screen

Return values

true	= This cell was split into lines.

Reimplemented in FracCell, FunCell, ExptCell, IntCell, SumCell, ParenCell, AbsCell, IntervalCell, LimitCell, ListCell, SqrtCell, ConjugateCell, DiffCell, and LongNumberCell.

◆ CellsInListRecursive()

int Cell::CellsInListRecursive ( ) const

How many cells does this cell contain?

The number of cells the current group contains (-1, if no GroupCell)

◆ ClearCache()

virtual void Cell::ClearCache ( )

inlinevirtual

Clears memory from cached items automatically regenerated when the cell is drawn

The scaled version of the image will be recreated automatically once it is needed.

Reimplemented in ImgCellBase, AnimationCell, and ImgCell.

◆ ClearCacheList()

void Cell::ClearCacheList ( )

Clears the cache of the whole list of cells starting with this one.

For details see ClearCache().

◆ ContainsPoint()

bool Cell::ContainsPoint ( wxPoint point ) const

inline

Is a given point inside this cell?

Parameters

point The point to test for collision with this cell

◆ ContainsRect()

bool Cell::ContainsRect	(	const wxRect &	sm,
		bool	all = `true`
	)		const

Is a part of this cell inside a certain rectangle?

Parameters

sm	The rectangle to test for collision with this cell
all	true means test this cell and the ones that are following it in the list false means test this cell only.

◆ Copy()

virtual std::unique_ptr<Cell> Cell::Copy ( GroupCell * group ) const

pure virtual

Create a copy of this cell

This method is purely virtual, which means every child class has to define its own Copy() method.

Implemented in ImgCellBase, FullTestCell, GroupCell, EditorCell, AnimationCell, AbsCell, FunCell, IntervalCell, ParenCell, SetCell, ListCell, ConjugateCell, ExptCell, SqrtCell, SumCell, FracCell, IntCell, LimitCell, ImgCell, TextCell, LabelCell, DigitCell, LongNumberCell, SubSupCell, MatrCell, AtCell, DiffCell, and SubCell.

◆ Draw()

void Cell::Draw ( wxPoint point )

virtual

Draw this cell

Parameters

point The x and y position this cell is drawn at: All top-level cells get their position during recalculation. But for the cells within them the position needs a second step after determining the dimension of the contents of the top-level cell.

Example: The position of the denominator of a fraction can only be determined after the height of denominator and numerator are known.

Draw this cell to dc

To make this work each derived class must draw the content of the cell and then call MathCall::Draw(...).

Reimplemented in ImgCellBase, GroupCell, EditorCell, ImgCell, AbsCell, ParenCell, FunCell, FracCell, ExptCell, IntervalCell, ListCell, SqrtCell, SumCell, SetCell, IntCell, LimitCell, TextCell, SubSupCell, LabelCell, AtCell, DiffCell, MatrCell, DigitCell, LongNumberCell, and SubCell.

◆ DrawBoundingBox()

void Cell::DrawBoundingBox	(	wxDC &	WXUNUSEDdc,
		bool	all = `false`
	)

virtual

Draw a rectangle that marks this cell or this list of cells as selected

Parameters

all	true: Draw the bounding box around this list of cells false: Draw the bounding box around this cell only
dc	The drawing context the box is drawn in.

◆ DrawList()

void Cell::DrawList ( wxPoint point )

Draw this list of cells

Parameters

point The x and y position this cell is drawn at

◆ DrawThisCell()

bool Cell::DrawThisCell ( wxPoint point )

Is this cell currently visible in the window?.

◆ ForceBreakLine()

void Cell::ForceBreakLine ( bool force = true )

inline

Insert (or remove) a forced linebreak at the beginning of this cell.

Parameters

force

true: Insert a forced linebreak
false: Remove the forced linebreak

◆ GetCellsInRect()

Cell::Range Cell::GetCellsInRect ( const wxRect & rect ) const

Returns the first and last cells within the given rectangle, recursing into the inner cells.

◆ GetCenter()

int Cell::GetCenter ( ) const

inline

Get the distance between the top and the center of this cell.

Remember that (for example with double fractions) the center does not have to be in the middle of a cell even if this object is — by definition — center-aligned.

◆ GetCenterList()

int Cell::GetCenterList ( ) const

Returns the maximum distance between top and center of this line

Note that the center doesn't need to be exactly in the middle of an object. For a fraction for example the center is exactly at the middle of the horizontal line.

◆ GetCurrentX()

int Cell::GetCurrentX ( ) const

inline

Get the x position of the top left of this cell

See m_currentPoint for more details.

◆ GetCurrentY()

int Cell::GetCurrentY ( ) const

inline

Get the y position of the top left of this cell

See m_currentPoint for more details.

◆ GetDrop()

int Cell::GetDrop ( ) const

inline

Get the distance between the center and the bottom of this cell

Remember that (for example with double fractions) the center does not have to be in the middle of an output cell even if the current object is — by definition — center-aligned.

This value is recalculated by Recalculate

◆ GetHeight()

int Cell::GetHeight ( ) const

inline

Get the height of this cell

This value is recalculated by Recalculate()

◆ GetHeightList()

int Cell::GetHeightList ( ) const

Returns the total height of this line

Returns GetCenterList()+GetMaxDrop()

◆ GetInnerCell()

Cell * Cell::GetInnerCell ( int index ) const

protectedvirtual

Retrieve an inner cell with given index which must be less than GetInnerCellCount.

Reimplemented in IterArrayCell< N >, GroupCell, AbsCell, FunCell, IntervalCell, ListCell, ParenCell, ConjugateCell, ExptCell, SqrtCell, SumCell, FracCell, IntCell, LimitCell, LongNumberCell, SubSupCell, AtCell, DiffCell, MatrCell, and SubCell.

◆ GetLineWidth()

int Cell::GetLineWidth ( ) const

How many pixels is the current line of this list of cells wide?

This command returns the real line width when all line breaks are really performed. See GetFullWidth().

◆ GetListCellsInRect()

Cell::Range Cell::GetListCellsInRect ( const wxRect & rect ) const

Returns the first and last cells within the given rectangle, without recursing into the inner cells.

◆ GetMaxDrop()

int Cell::GetMaxDrop ( ) const

Returns the maximum distance between center and bottom of this line

Note that the center doesn't need to be exactly in the middle of an object. For a fraction for example the center is exactly at the middle of the horizontal line.

◆ GetNextToDraw()

Cell* Cell::GetNextToDraw ( ) const

inline

Get the next cell that needs to be drawn

In case of potential 2d objects like fractions either the fraction needs to be drawn as a single 2D object or the nominator, the cell containing the "/" and the denominator are pointed to by GetNextToDraw() as single separate objects.

◆ GetRect()

wxRect Cell::GetRect ( bool all = false ) const

virtual

Get the smallest rectangle this cell fits in

Parameters

all	true: Get the rectangle for this cell and the ones that follow it in the list of cells false: Get the rectangle for this cell only.

Reimplemented in GroupCell.

◆ GetSuppressMultiplicationDot()

bool Cell::GetSuppressMultiplicationDot ( ) const

inline

Do we want to begin this cell with a center dot if it is part of a product?

Maxima will represent a product like (a*b*c) by a list like the following: [*,a,b,c]. This would result us in converting (a*b*c) to the following LaTeX code: \left(\cdot a ß\cdot b \cdot c\right) which obviously is one \cdot too many => we need parenthesis cells to set this flag for the first cell in their "inner cell" list.

◆ GetToolTip()

const wxString & Cell::GetToolTip ( wxPoint point ) const

virtual

Returns the ToolTip this cell provides at a given point.

Parameters

point The point in worksheet coordinates, must be inside the cell or else an empty string is returned.

Returns: the tooltip text, or empty string if none.

Reimplemented in ImgCellBase, GroupCell, AnimationCell, and ImgCell.

◆ GetType()

CellType Cell::GetType ( ) const

inline

Returns the type of this cell.

◆ GetWidth()

int Cell::GetWidth ( ) const

inline

Get the width of this cell

This value is recalculated by Recalculate()

◆ GnuplotSource()

virtual wxString Cell::GnuplotSource ( ) const

inlinevirtual

Retrieve the gnuplot source data for this image

wxEmptyString means: No such data.

Reimplemented in ImgCellBase, AnimationCell, and ImgCell.

◆ IsBrokenIntoLines()

bool Cell::IsBrokenIntoLines ( ) const

inline

Whether this cell is broken into two or more lines.

Long abs(), conjugate(), fraction and similar cells can be displayed as 2D objects, but will be displayed in their linear form (and therefore broken into lines) if they end up to be wider than the screen. In this case m_isBrokenIntoLines is true.

◆ IsComment()

bool Cell::IsComment ( ) const

inline

Determine if this cell contains text that isn't code

Returns: true, if this is a text cell, a title cell, a section, a subsection or a sub(n)section cell.

◆ IsHidden()

bool Cell::IsHidden ( ) const

inline

Whether this cell is not to be drawn.

Currently the following items fall into this category:

parenthesis around fractions or similar things that clearly can be recognized as atoms
plus signs within numbers
The output in folded GroupCells

◆ Recalculate()

void Cell::Recalculate ( AFontSize fontsize )

virtual

Recalculate the size of the cell and the difference between top and center

Must set: m_height, m_width, m_center.

Parameters

fontsize In exponents, super- and subscripts the font size is reduced. This cell therefore needs to know which font size it has to be drawn at.

Reimplemented in ImgCellBase, EditorCell, ImgCell, AbsCell, ParenCell, FunCell, FracCell, ExptCell, IntervalCell, ListCell, SqrtCell, SumCell, IntCell, LimitCell, TextCell, SubSupCell, LabelCell, AtCell, DiffCell, DigitCell, LongNumberCell, MatrCell, and SubCell.

◆ RecalculateList()

void Cell::RecalculateList ( AFontSize fontsize )

Recalculate both width and height of this list of cells.

Is faster than a RecalculateHeightList();RecalculateWidths();.

◆ ResetData()

void Cell::ResetData ( )

Mark all cached size information as "to be calculated".

Resets remembered size and position info for this cell and all cells inside it

Resets cached data like width and the height of the current cell as well as the vertical position of the center. Then repeats this with

◆ Scale_Px()

int Cell::Scale_Px ( double px ) const

inline

Scale font sizes and line widths according to the zoom factor.

Is used for displaying/printing/exporting of text/maths

◆ SetAltCopyText()

void Cell::SetAltCopyText ( const wxString & text )

virtual

What should end up if placing this cell on the clipboard?

AltCopyTexts for example make sense for subCells: a_n looks like a[n], even if both are lookalikes and the cell therefore needs to know what to put on the clipboard if this cell were copied. They also make sense in many other places we may never have thought about. But since we seriously want to save memory space on the ubiuitous TextCells it might be scary to apply this principle to them, at least if you know that text you copy from the internet to a terminal might contain additional commands with TextSize=0...

Reimplemented in TextCell, ExptCell, FunCell, SumCell, SubSupCell, and SubCell.

◆ SetNextToDraw()

virtual void Cell::SetNextToDraw ( Cell * next )

inlinevirtual

Tells this cell which one should be the next cell to be drawn

If the cell is displayed as 2d object this sets the pointer to the next cell.

If the cell is broken into lines this sets the pointer of the last of the list of cells this cell is displayed as.

Reimplemented in FracCell, FunCell, ParenCell, AbsCell, IntCell, IntervalCell, SumCell, ListCell, SqrtCell, LimitCell, ConjugateCell, DiffCell, and LongNumberCell.

◆ SetToolTip()

void Cell::SetToolTip ( const wxString * tooltip )

Set the tooltip of this math cell - it must be exist at least as long as the cell does. Translation results behave that way. I.e. it must be a static string!

◆ ToOMML()

wxString Cell::ToOMML ( ) const

virtual

Returns the cell's representation as OMML

If this method returns wxEmptyString this might mean that this cell is better handled in RTF; The OOML can later be translated to the respective RTF maths commands using OMML2RTF.

Don't know why OMML was implemented in a world that already knows MathML, though.

Reimplemented in FracCell, ParenCell, AbsCell, FunCell, IntCell, IntervalCell, ExptCell, ListCell, SqrtCell, SumCell, TextCell, LimitCell, SubSupCell, MatrCell, AtCell, DiffCell, and SubCell.

◆ ToRTF()

virtual wxString Cell::ToRTF ( ) const

inlinevirtual

Returns the cell's representation as RTF.

If this method returns wxEmptyString this might mean that this cell is better handled in OMML.

Reimplemented in ImgCellBase, GroupCell, EditorCell, ImgCell, and TextCell.

◆ Unbreak()

void Cell::Unbreak ( )

virtual

Undo breaking this cell into multiple lines

Some cells have different representations when they contain a line break. Examples for this are fractions or a set of parenthesis.

This function tries to return a cell to the single-line form.

Reimplemented in SumCell.

◆ UnbreakList()

void Cell::UnbreakList ( )

virtual

Unbreak this line

Some cells have different representations when they contain a line break. Examples for this are fractions or a set of parenthesis.

This function tries to return a list of cells to the single-line form.

◆ VariablesAndFunctionsList()

wxString Cell::VariablesAndFunctionsList ( ) const

Returns all variable and function names used inside this list of cells.

Used for detecting lookalike chars in function and variable names.

Member Data Documentation

◆ m_currentPoint

wxPoint Cell::m_currentPoint {-1, -1}

protected

The point in the work sheet at which this cell begins.

The begin of a cell is defined as

x=the left border of the cell
y=the vertical center of the cell. Which (per example in the case of a fraction) might not be the physical center but the vertical position of the horizontal line between numerator and denominator.

The current point is recalculated

for GroupCells by GroupCell::RecalculateHeight
for EditorCells by it's GroupCell's RecalculateHeight and
for Cells when they are drawn.

◆ m_group

CellPtr<GroupCell> Cell::m_group

protected

The GroupCell this list of cells belongs to.

◆ m_nextToDraw

CellPtr<Cell> Cell::m_nextToDraw

protected

The next cell in the draw list. This has been factored into Cell temporarily to reduce the change "noise" when it will be subsequently removed.

◆ m_toolTip

const wxString* Cell::m_toolTip

protected

This tooltip is owned by us when m_ownsToolTip is true. Otherwise, it points to a "static" string.

The documentation for this class was generated from the following files:

/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/src/cells/Cell.h
/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/src/cells/Cell.cpp
/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/src/cells/VisiblyInvalidCell.cpp
/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/src/Worksheet.cpp
/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/src/Worksheet.h
/home/dauti/Software/Crosscompiled-Windows-installer/build/wxmaxima-Version-22.03.0/test/unit_tests/TestStubs.cpp

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Function Documentation

◆ AddEnding()

◆ BreakUp()

◆ CellsInListRecursive()

◆ ClearCache()

◆ ClearCacheList()

◆ ContainsPoint()

◆ ContainsRect()

◆ Copy()

◆ Draw()

◆ DrawBoundingBox()

◆ DrawList()

◆ DrawThisCell()

◆ ForceBreakLine()

◆ GetCellsInRect()

◆ GetCenter()

◆ GetCenterList()

◆ GetCurrentX()

◆ GetCurrentY()

◆ GetDrop()

◆ GetHeight()

◆ GetHeightList()

◆ GetInnerCell()

◆ GetLineWidth()

◆ GetListCellsInRect()

◆ GetMaxDrop()

◆ GetNextToDraw()

◆ GetRect()

◆ GetSuppressMultiplicationDot()

◆ GetToolTip()

◆ GetType()

◆ GetWidth()

◆ GnuplotSource()

◆ IsBrokenIntoLines()

◆ IsComment()

◆ IsHidden()

◆ Recalculate()

◆ RecalculateList()

◆ ResetData()

◆ Scale_Px()

◆ SetAltCopyText()

◆ SetNextToDraw()

◆ SetToolTip()

◆ ToOMML()

◆ ToRTF()

◆ Unbreak()

◆ UnbreakList()

◆ VariablesAndFunctionsList()

Member Data Documentation

◆ m_currentPoint

◆ m_group

◆ m_nextToDraw

◆ m_toolTip
